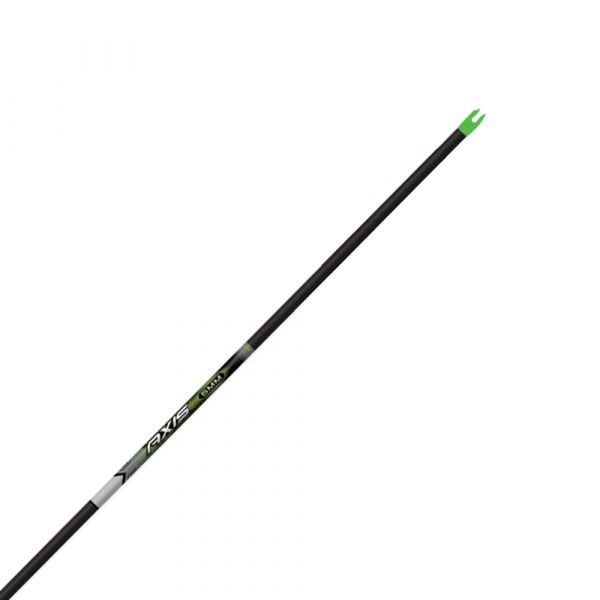

Easton Axis 5mm

Easton Axis 5mm

Spine

, , , , , , ,

Brand

Diameter Class

Straightness

0.003
Material

Build & Calculate FOC

Arrow Specs

> Shaft

Shaft Spine:

Shaft GPI:

> Insert & Point

Insert Name:

Insert Weight Grains:

> Nock

Nock Name:

Nock Weight Grains:

> Fletch & Wrap

Arrow Calcs:

TAW:

FOC:

Product Description

The Easton AXIS series represents the pinnacle of small-diameter carbon arrow technology, engineered for hunters and archers who demand the highest levels of penetration, speed, and accuracy. Built with Easton’s legendary 100% carbon technology, these arrows offer unmatched durability and straightness retention. The entire AXIS lineup is designed to deliver deep penetration thanks to their micro-diameter profile, which reduces friction and wind drift, ensuring that broadheads hit the mark more consistently.

The AXIS 5mm arrows at +/- .003″ are the foundation of the series, balancing speed, penetration, and durability. The AXIS Match Grade arrows elevate precision to the highest level with a match-grade straightness of ±.001”, making them the choice for hunters and competitive archers seeking the ultimate in performance and consistency. The AXIS Sport (SPT) version is designed for archers with shorter draw lengths or lighter-poundage bows, offering a more affordable entry into the AXIS family without sacrificing performance. They’re compatible with all AXIS components, making them versatile for various setups.

Each variant in the AXIS line is designed with specific features to enhance field performance, from the standard model’s broad utility to the Match Grade’s elite accuracy and the Sport’s value-oriented design for those with specific draw and poundage needs. The AXIS series ensures that there’s a high-performance, small-diameter arrow for every archer’s requirements.

Product Specs

Spine Shaft GPI Inside Diameter (") Outside Diameter (") Full Shaft Length (")
200 12.0 0.204 0.286 34
260 11.5 0.204 0.280 34
300 10.7 0.204 0.275 32.5
340 9.5 0.204 0.267 32
400 9.0 0.204 0.264 31.5
500 8.1 0.204 0.258 31
600 7.2 0.204 0.253 30.5
700 6.1 0.204 0.245 31.5

Select a Spine to build and view details

200 Spine Details

Easton Axis 5mm Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Easton 5mm HIT Insert Easton 5mm HIT Insert 16
Alternative Direct Fit Inserts
Image Insert Weight Grains

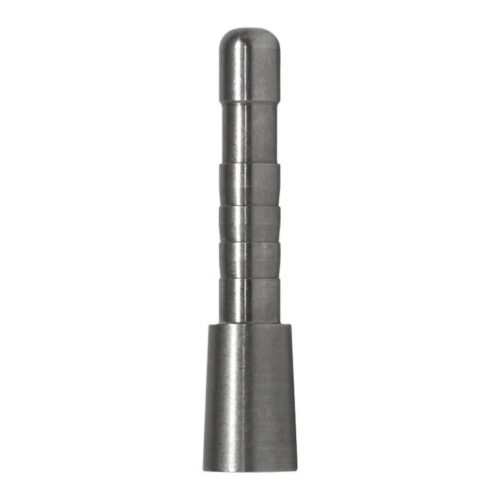

Easton 5mm Steel Halfout Easton 5mm Steel Halfout - #2 75
Easton 5mm Aluminium Halfout Easton 5mm Aluminium Halfout - #2 25
Easton 5mm Brass HIT Break-off Insert Easton 5mm Brass HIT Break-off Insert 75
Easton 5mm Deep Six Steel RPS Inserts Easton 5mm Deep Six Steel RPS Inserts 25
Easton Axis 5mm Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
Easton 5MM X Nock Easton 5MM X Nock 9
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price
Check Price

260 Spine Details

Easton Axis 5mm Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Easton 5mm HIT Insert Easton 5mm HIT Insert 16
Alternative Direct Fit Inserts
Image Insert Weight Grains
Easton 5mm Steel Halfout Easton 5mm Steel Halfout - #2 75
Easton 5mm Aluminium Halfout Easton 5mm Aluminium Halfout - #2 25
Easton 5mm Brass HIT Break-off Insert Easton 5mm Brass HIT Break-off Insert 75
Easton 5mm Deep Six Steel RPS Inserts Easton 5mm Deep Six Steel RPS Inserts 25
Easton Axis 5mm Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
Easton 5MM X Nock Easton 5MM X Nock 9
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price
Check Price

300 Spine Details

Easton Axis 5mm Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Easton 5mm HIT Insert Easton 5mm HIT Insert 16
Alternative Direct Fit Inserts
Image Insert Weight Grains
Easton 5mm Steel Halfout Easton 5mm Steel Halfout - #2 75
Easton 5mm Aluminium Halfout Easton 5mm Aluminium Halfout - #2 25
Easton 5mm Brass HIT Break-off Insert Easton 5mm Brass HIT Break-off Insert 75
Easton 5mm Deep Six Steel RPS Inserts Easton 5mm Deep Six Steel RPS Inserts 25
Easton Axis 5mm Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
Easton 5MM X Nock Easton 5MM X Nock 9
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price
Check Price

340 Spine Details

Easton Axis 5mm Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Easton 5mm HIT Insert Easton 5mm HIT Insert 16
Alternative Direct Fit Inserts
Image Insert Weight Grains
Easton 5mm Steel Halfout Easton 5mm Steel Halfout - #2 75
Easton 5mm Aluminium Halfout Easton 5mm Aluminium Halfout - #2 25
Easton 5mm Brass HIT Break-off Insert Easton 5mm Brass HIT Break-off Insert 75
Easton 5mm Deep Six Steel RPS Inserts Easton 5mm Deep Six Steel RPS Inserts 25
Easton Axis 5mm Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
Easton 5MM X Nock Easton 5MM X Nock 9
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price
Check Price

400 Spine Details

Easton Axis 5mm Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Easton 5mm HIT Insert Easton 5mm HIT Insert 16
Alternative Direct Fit Inserts
Image Insert Weight Grains
Easton 5mm Steel Halfout Easton 5mm Steel Halfout - #2 75
Easton 5mm Aluminium Halfout Easton 5mm Aluminium Halfout - #2 25
Easton 5mm Brass HIT Break-off Insert Easton 5mm Brass HIT Break-off Insert 75
Easton 5mm Deep Six Steel RPS Inserts Easton 5mm Deep Six Steel RPS Inserts 25
Easton Axis 5mm Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
Easton 5MM X Nock Easton 5MM X Nock 9
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price
Check Price

500 Spine Details

Easton Axis 5mm Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Easton 5mm HIT Insert Easton 5mm HIT Insert 16
Alternative Direct Fit Inserts
Image Insert Weight Grains
Easton 5mm Steel Halfout Easton 5mm Steel Halfout - #1 75
Easton 5mm Aluminium Halfout Easton 5mm Aluminium Halfout - #1 25
Easton 5mm Brass HIT Break-off Insert Easton 5mm Brass HIT Break-off Insert 75
Easton 5mm Deep Six Steel RPS Inserts Easton 5mm Deep Six Steel RPS Inserts 25
Easton Axis 5mm Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
Easton 5MM X Nock Easton 5MM X Nock 9
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price
Check Price

600 Spine Details

Easton Axis 5mm Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Easton 5mm HIT Insert Easton 5mm HIT Insert 16
Alternative Direct Fit Inserts
Image Insert Weight Grains
Easton 5mm Steel Halfout Easton 5mm Steel Halfout - #1 75
Easton 5mm Aluminium Halfout Easton 5mm Aluminium Halfout - #1 25
Easton 5mm Brass HIT Break-off Insert Easton 5mm Brass HIT Break-off Insert 75
Easton 5mm Deep Six Steel RPS Inserts Easton 5mm Deep Six Steel RPS Inserts 25
Easton Axis 5mm Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
Easton 5MM X Nock Easton 5MM X Nock 9
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price
Check Price

700 Spine Details

Easton Axis 5mm Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Easton 5mm HIT Insert Easton 5mm HIT Insert 16
Alternative Direct Fit Inserts
Image Insert Weight Grains
Easton 5mm Brass HIT Break-off Insert Easton 5mm Brass HIT Break-off Insert 75
Easton 5mm Deep Six Steel RPS Inserts Easton 5mm Deep Six Steel RPS Inserts 25
Easton Axis 5mm Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
Easton 5MM X Nock Easton 5MM X Nock 9
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price
Check Price

Frequently Asked Questions

What is the Easton Axis 5mm inside diameter?
Easton Axis 5mm are a 5mm class arrow, with an exact inside diameter of 0.204" for all spine options.
