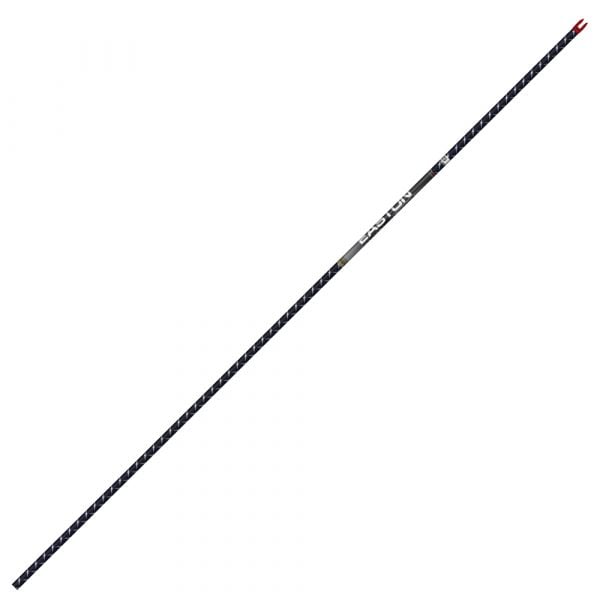

Easton FMJ 4mm

Spine

, , ,

Brand

Diameter Class

Straightness

0.002

Material

Arrow Specs

> Shaft

Shaft Spine:

Shaft GPI:

> Insert & Point

Insert Name:

Insert Weight Grains:

> Nock

Nock Name:

Nock Weight Grains:

> Fletch & Wrap

Arrow Calcs:

TAW:

FOC:

Product Description

The 4MM Full Metal Jacket (FMJ) arrows by Easton stand out for their unmatched penetration and precision. The micro-diameter design focuses on optimizing front-of-center for easier broadhead tuning and enhancing durability. The FMJ’s construction begins with an advanced carbon core for strength and light weight, encased in a full metal jacket to boost kinetic energy, accuracy, and ease of target removal. This powerful combination ensures deep penetration and increased pass-through impacts, leading to quicker kills and more substantial blood trails.

Pre-installed 4mm Microlite nocks and an aluminum point outsert (50 grains) are included for improved front-of-center balance and hunting effectiveness. The FMJ arrows are available in straightness tolerances of ±.002” and a Match Grade version at ±.001”, for top tier accuracy.

Product Specs

Spine Shaft GPI Inside Diameter (") Outside Diameter (") Full Shaft Length (")
250 12.3 0.165 0.247 33
300 11.7 0.165 0.244 32.5
340 11.0 0.165 0.24 32
400 9.8 0.165 0.234 31.5

Select a Spine to build and view details

250 Spine Details

Easton FMJ 4mm Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Easton 4mm Aluminium Halfout Easton 4mm Aluminium Halfout - #5 50
Alternative Direct Fit Inserts
Image Insert Weight Grains
Easton 4mm Steel Halfout Easton 4mm Steel Halfout - #5 95
Easton 4mm Titanium Halfout Easton 4mm Titanium Halfout 55
Easton 4mm 55gr Match Grade Halfout Easton 4mm 55gr Match Grade Halfout - #5 55
Easton 4mm 75gr Match Grade Halfout Easton 4mm 75gr Match Grade Halfout - #5 75
Easton 4mm 100gr Match Grade Halfout Easton 4mm 100gr Match Grade Halfout - #5 100
Easton 4mm 150gr Match Grade Halfout Easton 4mm 150gr Match Grade Halfout - #5 150
Easton 4mm Deep-Six Steel Insert Easton 4mm Deep-Six Steel Insert 20
Easton FMJ 4mm Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
Easton 4MM Microlite Nock Easton 4MM Microlite Nock 6
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price
Check Price

300 Spine Details

Easton FMJ 4mm Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Easton 4mm Aluminium Halfout Easton 4mm Aluminium Halfout - #4 50
Alternative Direct Fit Inserts
Image Insert Weight Grains
Easton 4mm Steel Halfout Easton 4mm Steel Halfout - #4 95
Easton 4mm Titanium Halfout Easton 4mm Titanium Halfout 55
Easton 4mm 55gr Match Grade Halfout Easton 4mm 55gr Match Grade Halfout - #4 55
Easton 4mm 75gr Match Grade Halfout Easton 4mm 75gr Match Grade Halfout - #4 75
Easton 4mm 100gr Match Grade Halfout Easton 4mm 100gr Match Grade Halfout - #4 100
Easton 4mm 150gr Match Grade Halfout Easton 4mm 150gr Match Grade Halfout - #4 150
Easton 4mm Deep-Six Steel Insert Easton 4mm Deep-Six Steel Insert 20
Easton FMJ 4mm Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
Easton 4MM Microlite Nock Easton 4MM Microlite Nock 6
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price
Check Price

340 Spine Details

Easton FMJ 4mm Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Easton 4mm Aluminium Halfout Easton 4mm Aluminium Halfout - #3 50
Alternative Direct Fit Inserts
Image Insert Weight Grains
Easton 4mm Steel Halfout Easton 4mm Steel Halfout - #3 95
Easton 4mm Titanium Halfout Easton 4mm Titanium Halfout 55
Easton 4mm 55gr Match Grade Halfout Easton 4mm 55gr Match Grade Halfout - #3 55
Easton 4mm 75gr Match Grade Halfout Easton 4mm 75gr Match Grade Halfout - #3 75
Easton 4mm 100gr Match Grade Halfout Easton 4mm 100gr Match Grade Halfout - #3 100
Easton 4mm 150gr Match Grade Halfout Easton 4mm 150gr Match Grade Halfout - #3 150
Easton 4mm Deep-Six Steel Insert Easton 4mm Deep-Six Steel Insert 20
Easton FMJ 4mm Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
Easton 4MM Microlite Nock Easton 4MM Microlite Nock 6
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price
Check Price

400 Spine Details

Easton FMJ 4mm Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Easton 4mm Aluminium Halfout Easton 4mm Aluminium Halfout - #2 50
Alternative Direct Fit Inserts
Image Insert Weight Grains
Easton 4mm Steel Halfout Easton 4mm Steel Halfout - #2 95
Easton 4mm Titanium Halfout Easton 4mm Titanium Halfout 55
Easton 4mm 55gr Match Grade Halfout Easton 4mm 55gr Match Grade Halfout - #2 55
Easton 4mm 75gr Match Grade Halfout Easton 4mm 75gr Match Grade Halfout - #2 75
Easton 4mm 100gr Match Grade Halfout Easton 4mm 100gr Match Grade Halfout - #2 100
Easton 4mm Deep-Six Steel Insert Easton 4mm Deep-Six Steel Insert 20
Easton FMJ 4mm Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
Easton 4MM Microlite Nock Easton 4MM Microlite Nock 6
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price
Check Price

Frequently Asked Questions

What is the Easton FMJ 4mm inside diameter?
Easton FMJ 4mm are a 4mm class arrow, with an exact inside diameter of 0.165" for all spine options.
