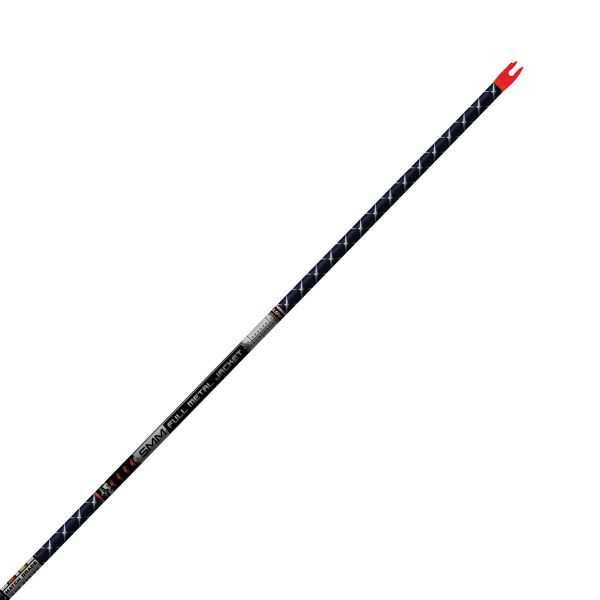

Easton FMJ 5mm Match Grade

Spine

, , , ,

Brand

Diameter Class

Straightness

0.001

Material

Arrow Specs

> Shaft

Shaft Spine:

Shaft GPI:

> Insert & Point

Insert Name:

Insert Weight Grains:

> Nock

Nock Name:

Nock Weight Grains:

> Fletch & Wrap

Arrow Calcs:

TAW:

FOC:

Product Description

The Easton 5mm FMJ (Full Metal Jacket) arrows are renowned for their unmatched penetration and kinetic punch, specifically designed to tackle thick hide and bone. These arrows merge the precision and straightness of aluminum with the stiffness, durability, and speed of carbon, resulting in a hunting arrow that delivers pure performance. The FMJ arrows are built with a small-diameter, thick-walled carbon-fiber core encased in a 7075 alloy metal jacket, offering more bone-crushing power, deeper penetration, and more pass-throughs.

Key features include 5mm HIT 8-32 inserts, pre-installed 5mm X nocks, and easy target pull, ensuring these arrows not only hit hard but also pull easily from high-density targets. The FMJ arrows boast a guaranteed straightness of ±.002” or a Match Grade version at ±.001″, ensuring superior accuracy.

Product Specs

Spine Shaft GPI Inside Diameter (") Outside Diameter (") Full Shaft Length (")
250 11.5 0.204 0.273 33
300 12.0 0.204 0.273 32.5
340 11.3 0.204 0.269 32
400 10.2 0.204 0.263 31.5
500 9.1 0.204 0.256 31

Select a Spine to build and view details

250 Spine Details

Easton FMJ 5mm Match Grade Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Easton 5mm HIT Insert Easton 5mm HIT Insert 16
Alternative Direct Fit Inserts
Image Insert Weight Grains
Easton 5mm Steel Halfout Easton 5mm Steel Halfout - #2 75
Easton 5mm Aluminium Halfout Easton 5mm Aluminium Halfout - #2 25
Easton 5mm Brass HIT Break-off Insert Easton 5mm Brass HIT Break-off Insert 75
Easton 5mm Deep Six Steel RPS Inserts Easton 5mm Deep Six Steel RPS Inserts 25
Easton FMJ 5mm Match Grade Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
Easton 5MM X Nock Easton 5MM X Nock 9
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price
Check Price

300 Spine Details

Easton FMJ 5mm Match Grade Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Easton 5mm HIT Insert Easton 5mm HIT Insert 16
Alternative Direct Fit Inserts
Image Insert Weight Grains
Easton 5mm Steel Halfout Easton 5mm Steel Halfout - #2 75
Easton 5mm Aluminium Halfout Easton 5mm Aluminium Halfout - #2 25
Easton 5mm Brass HIT Break-off Insert Easton 5mm Brass HIT Break-off Insert 75
Easton 5mm Deep Six Steel RPS Inserts Easton 5mm Deep Six Steel RPS Inserts 25
Easton FMJ 5mm Match Grade Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
Easton 5MM X Nock Easton 5MM X Nock 9
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price
Check Price

340 Spine Details

Easton FMJ 5mm Match Grade Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Easton 5mm HIT Insert Easton 5mm HIT Insert 16
Alternative Direct Fit Inserts
Image Insert Weight Grains
Easton 5mm Steel Halfout Easton 5mm Steel Halfout - #2 75
Easton 5mm Aluminium Halfout Easton 5mm Aluminium Halfout - #2 25
Easton 5mm Brass HIT Break-off Insert Easton 5mm Brass HIT Break-off Insert 75
Easton 5mm Deep Six Steel RPS Inserts Easton 5mm Deep Six Steel RPS Inserts 25
Easton FMJ 5mm Match Grade Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
Easton 5MM X Nock Easton 5MM X Nock 9
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price
Check Price

400 Spine Details

Easton FMJ 5mm Match Grade Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Easton 5mm HIT Insert Easton 5mm HIT Insert 16
Alternative Direct Fit Inserts
Image Insert Weight Grains
Easton 5mm Steel Halfout Easton 5mm Steel Halfout - #2 75
Easton 5mm Aluminium Halfout Easton 5mm Aluminium Halfout - #2 25
Easton 5mm Brass HIT Break-off Insert Easton 5mm Brass HIT Break-off Insert 75
Easton 5mm Deep Six Steel RPS Inserts Easton 5mm Deep Six Steel RPS Inserts 25
Easton FMJ 5mm Match Grade Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
Easton 5MM X Nock Easton 5MM X Nock 9
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price
Check Price

500 Spine Details

Easton FMJ 5mm Match Grade Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Easton 5mm HIT Insert Easton 5mm HIT Insert 16
Alternative Direct Fit Inserts
Image Insert Weight Grains
Easton 5mm Steel Halfout Easton 5mm Steel Halfout - #1 75
Easton 5mm Aluminium Halfout Easton 5mm Aluminium Halfout - #1 25
Easton 5mm Brass HIT Break-off Insert Easton 5mm Brass HIT Break-off Insert 75
Easton 5mm Deep Six Steel RPS Inserts Easton 5mm Deep Six Steel RPS Inserts 25
Easton FMJ 5mm Match Grade Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
Easton 5MM X Nock Easton 5MM X Nock 9
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price
Check Price

Frequently Asked Questions

What is the Easton FMJ 5mm Match Grade inside diameter?
Easton FMJ 5mm Match Grade are a 5mm class arrow, with an exact inside diameter of 0.204" for all spine options.
