Gold Tip Hunter Pro specs, components, FOC, arrow weight

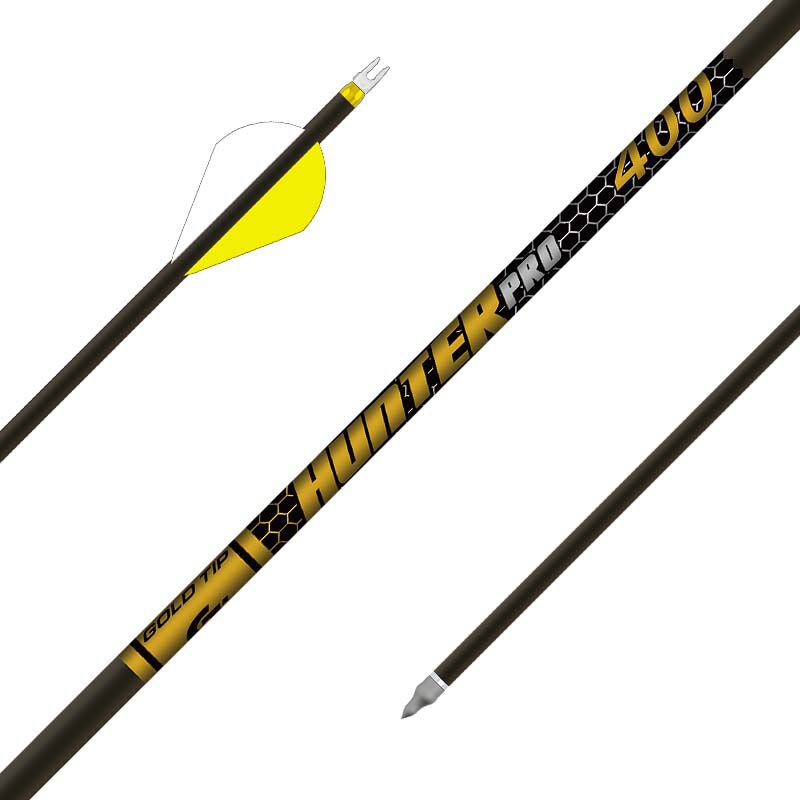

Gold Tip Hunter Pro

Spine	300, 340, 400, 500
Brand	Gold Tip
Diameter Class	6.5mm
Straightness	0.001
Material	Carbon

Build & Calculate FOC

Arrow Specs

> Shaft

Shaft Spine:

Shaft GPI:

Shaft Length (inches):

> Insert & Point

Insert Name:

Insert Weight Grains:

Point Weight (grains):

> Nock

Nock Name:

Nock Weight Grains:

> Fletch & Wrap

Number of Vanes:

Weight Per Vane (grains):

Wrap Weight (grains):

Arrow Calcs:

TAW:

FOC:

Product Description

The Gold Tip Hunter series arrows, including the Hunter, Hunter Pro, and Hunter XT variants, are designed for versatility and durability, embodying the original Gold Tip design ethos. These mid-weight arrows offer a perfect balance of speed and penetration, suitable for various hunting situations. Built with Gold Tip’s legendary 100% Carbon Technology, they promise unmatched durability and straightness retention. The Hunter Pro and Hunter XT models provide even tighter straightness and weight tolerances for those demanding the highest precision. With options for every hunter’s needs, these arrows are constructed to last a lifetime, featuring the reliability and performance Gold Tip is known for. Whether you choose the standard Hunter for its proven performance, the Hunter Pro for its enhanced accuracy, or the Hunter XT for its optimal balance of speed and strength, you’re equipped with a top-tier arrow ready for any challenge.

Product Specs

Spine	Shaft GPI	Inside Diameter (")	Outside Diameter (")	Full Shaft Length (")
300	9.3	0.246	0.302	32
340	8.9	0.246	0.300	32
400	8.2	0.246	0.295	32
500	7.3	0.246	0.291	30

Select a Spine to build and view details

300

340

400

500

300 Spine Details

Gold Tip Hunter Pro Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Gold Tip Accu-lite .246 Insert - Standard	12.1	Select

Alternative Direct Fit Inserts

Image	Insert	Weight Grains
	Gold Tip .246 Aluminum 50gr Insert	50	Select
	Gold Tip .246 Brass Insert	100	Select

Gold Tip Hunter Pro Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains

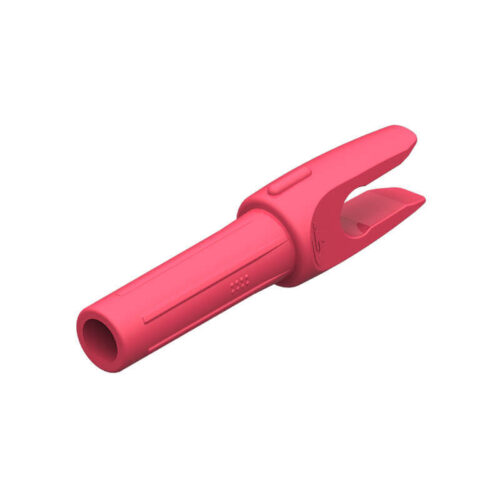

	Gold Tip GTO Nock	5.3	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch
	Check Price

340 Spine Details

Gold Tip Hunter Pro Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Gold Tip Accu-lite .246 Insert - Standard	12.1	Select

Alternative Direct Fit Inserts

Image	Insert	Weight Grains
	Gold Tip .246 Aluminum 50gr Insert	50	Select
	Gold Tip .246 Brass Insert	100	Select

Gold Tip Hunter Pro Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains
	Gold Tip GTO Nock	5.3	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch
	Check Price

400 Spine Details

Gold Tip Hunter Pro Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Gold Tip Accu-lite .246 Insert - Standard	12.1	Select

Alternative Direct Fit Inserts

Image	Insert	Weight Grains
	Gold Tip .246 Aluminum 50gr Insert	50	Select
	Gold Tip .246 Brass Insert	100	Select

Gold Tip Hunter Pro Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains
	Gold Tip GTO Nock	5.3	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch
	Check Price

500 Spine Details

Gold Tip Hunter Pro Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Gold Tip Accu-lite .246 Insert - Small	12.1	Select

Alternative Direct Fit Inserts

Image	Insert	Weight Grains
	Gold Tip .246 Aluminum 50gr Insert	50	Select
	Gold Tip .246 Brass Insert	100	Select

Gold Tip Hunter Pro Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains
	Gold Tip GTO Nock	5.3	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch
	Check Price

Frequently Asked Questions

What is the Gold Tip Hunter Pro inside diameter?

Gold Tip Hunter Pro are a 6.5mm class arrow, with an exact inside diameter of 0.246" for all spine options.
