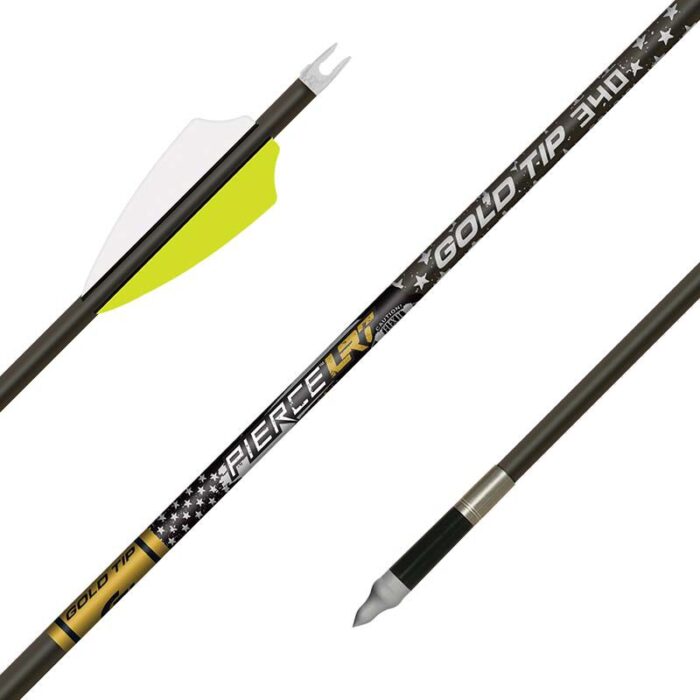

Gold Tip Pierce LRT

Spine

, , , ,

Brand

Diameter Class

Straightness

0.001

Material

Arrow Specs

> Shaft

Shaft Spine:

Shaft GPI:

> Insert & Point

Insert Name:

Insert Weight Grains:

> Nock

Nock Name:

Nock Weight Grains:

> Fletch & Wrap

Arrow Calcs:

TAW:

FOC:

Product Description

The Pierce LRT by Gold Tip represents the zenith of long-range tactical hunting arrow technology. Engineered from the proven Pierce shaft, it now features even tighter tolerances and enhanced components, setting a new benchmark for performance in the field. The micro-diameter shaft ensures superior penetration and reduced wind drift at long distances, making it the ultimate choice for hunters aiming to extend their range.

This arrow’s one-piece component system is designed for straightforward, perfect installation every time, eliminating the guesswork from arrow assembly. The inclusion of Dyna-Tek Slick Shield™ coating not only facilitates deeper penetration into the target but also simplifies arrow removal, enhancing the overall hunting experience.

With a straightness tolerance of +/- .001” and a weight tolerance of just 0.5 gr, the Pierce LRT is precision personified. Equipped with a cutting-edge ceramic clear coating for unmatched penetration and ease of removal and a patent-pending component system, alongside optional titanium one-piece components, ensures durability and performance under the most demanding conditions.

Available in spine sizes from 250 (9.8 gpi) to 500 (6.6 gpi), and complete with GTO Nock and the Ballistic Insert System, the Pierce LRT stands as the most formidable hunting arrow ever crafted by Gold Tip, ready to meet the needs of the most serious long-range hunters.

Product Specs

Spine Shaft GPI Inside Diameter (") Outside Diameter (") Full Shaft Length (")
250 9.8 0.166 0.245 32
300 9.1 0.166 0.240 32
340 8.3 0.166 0.234 32
400 7.5 0.166 0.229 32
500 6.6 0.166 0.223 30

Select a Spine to build and view details

250 Spine Details

Gold Tip Pierce LRT Compatible Inserts
Default Insert (included)
Image Insert Weight Grains

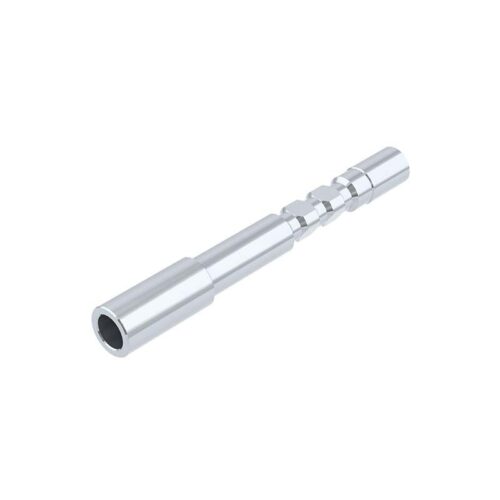

Gold Tip Pierce Aluminum Insert Gold Tip Pierce Aluminum Insert 19.5
Alternative Direct Fit Inserts
Image Insert Weight Grains
Placeholder Gold Tip Pierce Titanium Insert 55
Gold Tip Pierce LRT Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
Gold Tip GTO Nock Gold Tip GTO Nock 5.3
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price

300 Spine Details

Gold Tip Pierce LRT Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Gold Tip Pierce Aluminum Insert Gold Tip Pierce Aluminum Insert 19.5
Alternative Direct Fit Inserts
Image Insert Weight Grains
Placeholder Gold Tip Pierce Titanium Insert 55
Gold Tip Pierce LRT Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
Gold Tip GTO Nock Gold Tip GTO Nock 5.3
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price

340 Spine Details

Gold Tip Pierce LRT Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Gold Tip Pierce Aluminum Insert Gold Tip Pierce Aluminum Insert 19.5
Alternative Direct Fit Inserts
Image Insert Weight Grains
Placeholder Gold Tip Pierce Titanium Insert 55
Gold Tip Pierce LRT Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
Gold Tip GTO Nock Gold Tip GTO Nock 5.3
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price

400 Spine Details

Gold Tip Pierce LRT Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Gold Tip Pierce Aluminum Insert Gold Tip Pierce Aluminum Insert 19.5
Alternative Direct Fit Inserts
Image Insert Weight Grains
Placeholder Gold Tip Pierce Titanium Insert 55
Gold Tip Pierce LRT Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
Gold Tip GTO Nock Gold Tip GTO Nock 5.3
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price

500 Spine Details

Gold Tip Pierce LRT Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Gold Tip Pierce Aluminum Insert Gold Tip Pierce Aluminum Insert 19.5
Alternative Direct Fit Inserts
Image Insert Weight Grains
Placeholder Gold Tip Pierce Titanium Insert 55
Gold Tip Pierce LRT Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
Gold Tip GTO Nock Gold Tip GTO Nock 5.3
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price

Frequently Asked Questions

What is the Gold Tip Pierce LRT inside diameter?
Gold Tip Pierce LRT are a 4mm class arrow, with an exact inside diameter of 0.166" for all spine options.
