Gold Tip Ted Nugent specs, components, FOC, arrow weight

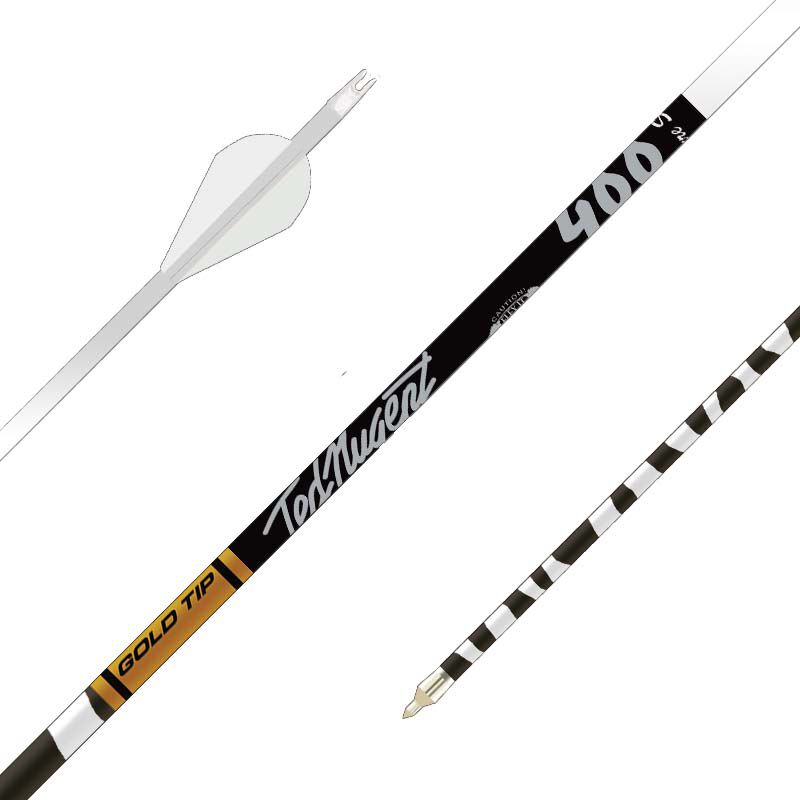

Gold Tip Ted Nugent

Spine	300, 400, 500
Brand	Gold Tip
Diameter Class	6.5mm
Straightness	0.006
Material	Carbon

Build & Calculate FOC

Arrow Specs

> Shaft

Shaft Spine:

Shaft GPI:

Shaft Length (inches):

> Insert & Point

Insert Name:

Insert Weight Grains:

Point Weight (grains):

> Nock

Nock Name:

Nock Weight Grains:

> Fletch & Wrap

Number of Vanes:

Weight Per Vane (grains):

Wrap Weight (grains):

Arrow Calcs:

TAW:

FOC:

Product Description

Ted Nugent, known for his intensity and no-compromise attitude, demanded arrows that could match his hunting ethos when he partnered with Gold Tip for his Signature Series. These arrows needed to embody strength, speed, and impactful performance, critical for Nugent’s “Wack’em and stack’em” philosophy. The Ted Nugent Signature Series delivers on these demands with three distinct options, each tailored to meet the specific needs of serious hunters and styled with Nugent’s unique flair.

Designed to be stronger, faster, and harder hitting, these arrows are built with Gold Tip’s renowned precision and durability. With a straightness tolerance of +/- .006″ and a weight tolerance of +/- 2 gr, each arrow in the Ted Nugent Signature Series ensures reliable performance and accuracy, whether on the hunt or on the practice range. Each option in the series is a testament to Nugent’s dedication to quality and performance in the field, offering archers the capability to take on the most challenging hunts with confidence.

Product Specs

Spine	Shaft GPI	Inside Diameter (")	Outside Diameter (")	Full Shaft Length (")
300	10.8	0.246	0.313	32
400	9.3	0.246	0.301	32
500	8.4	0.246	0.297	30

Select a Spine to build and view details

300

400

500

300 Spine Details

Gold Tip Ted Nugent Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Gold Tip Accu-lite .246 Insert - Standard	12.1	Select

Alternative Direct Fit Inserts

Image	Insert	Weight Grains
	Gold Tip .246 Aluminum 50gr Insert	50	Select
	Gold Tip .246 Brass Insert	100	Select

Gold Tip Ted Nugent Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains
	Gold Tip GT Nock	12.2	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch

400 Spine Details

Gold Tip Ted Nugent Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Gold Tip Accu-lite .246 Insert - Standard	12.1	Select

Alternative Direct Fit Inserts

Image	Insert	Weight Grains
	Gold Tip .246 Aluminum 50gr Insert	50	Select
	Gold Tip .246 Brass Insert	100	Select

Gold Tip Ted Nugent Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains
	Gold Tip GT Nock	12.2	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch

500 Spine Details

Gold Tip Ted Nugent Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Gold Tip Accu-lite .246 Insert - Standard	12.1	Select

Alternative Direct Fit Inserts

Image	Insert	Weight Grains
	Gold Tip .246 Aluminum 50gr Insert	50	Select
	Gold Tip .246 Brass Insert	100	Select

Gold Tip Ted Nugent Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains
	Gold Tip GT Nock	12.2	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch

Frequently Asked Questions

What is the Gold Tip Ted Nugent inside diameter?

Gold Tip Ted Nugent are a 6.5mm class arrow, with an exact inside diameter of 0.246" for all spine options.
