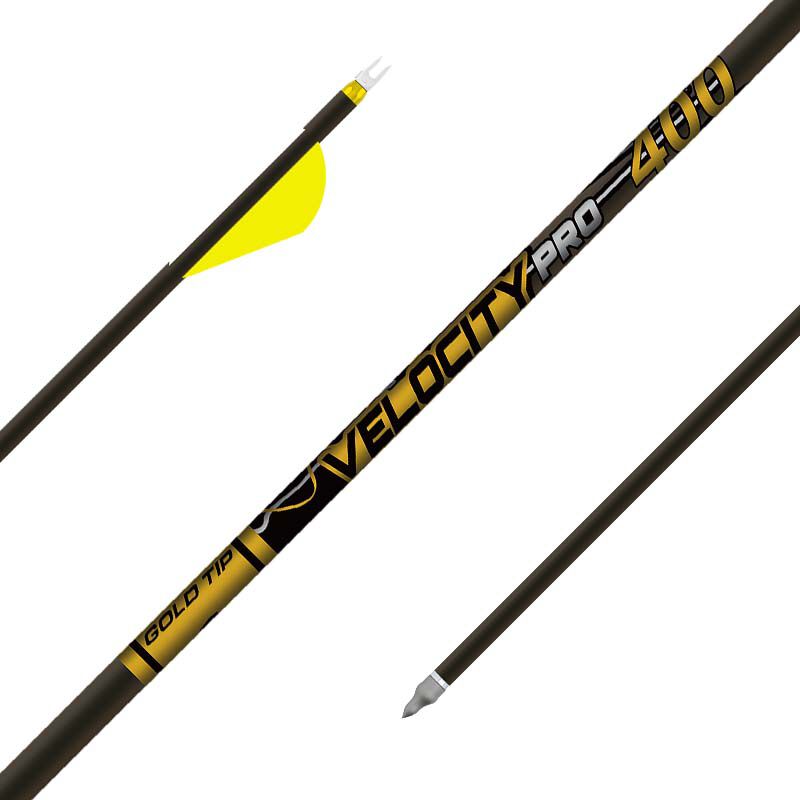

Gold Tip Velocity Pro

Spine

, , , ,

Brand

Diameter Class

Straightness

0.001

Material

Arrow Specs

> Shaft

Shaft Spine:

Shaft GPI:

> Insert & Point

Insert Name:

Insert Weight Grains:

> Nock

Nock Name:

Nock Weight Grains:

> Fletch & Wrap

Arrow Calcs:

TAW:

FOC:

Product Description

The Gold Tip Velocity series is engineered for archers seeking both speed and precision in their arrows. Featuring a .204 diameter shaft for minimal wind drift and enhanced penetration, the Velocity is constructed from Gold Tip’s renowned 100% Carbon Technology, ensuring superior durability and consistent straightness retention.

The advanced nano-ceramic arrow coating not only improves penetration but also simplifies target removal. Designed to maximize the performance of even the most technologically sophisticated speed bows, the Velocity series includes options like the Velocity XT and Velocity Pro, offering a range of straightness tolerances from ± .001″ to ± .006″ and weight tolerances from ± .5 gr to ± 2 gr to suit various shooting preferences and needs.

Whether you choose the Velocity XT for its incredible durability and straightness retention or the Velocity Pro for its ultra-tight tolerances and enhanced FOC, Gold Tip’s Velocity arrows are built to make slow bows fast and fast bows even faster, ensuring every shot counts.

Product Specs

Spine Shaft GPI Inside Diameter (") Outside Diameter (") Full Shaft Length (")
300 8.8 0.246 0.299 32
340 8.2 0.246 0.296 32
400 7.4 0.246 0.291 32
500 6.3 0.246 0.285 30
600 5.9 0.246 0.283 30

Select a Spine to build and view details

300 Spine Details

Gold Tip Velocity Pro Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Gold Tip Accu-lite .246 Insert Gold Tip Accu-lite .246 Insert - Standard 12.1
Alternative Direct Fit Inserts
Image Insert Weight Grains
Gold Tip .246 Aluminum 50gr Insert Gold Tip .246 Aluminum 50gr Insert 50
Gold Tip .246 Brass Insert Gold Tip .246 Brass Insert 100
Gold Tip Velocity Pro Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
Gold Tip GTO Nock Gold Tip GTO Nock 5.3
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price

340 Spine Details

Gold Tip Velocity Pro Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Gold Tip Accu-lite .246 Insert Gold Tip Accu-lite .246 Insert - Standard 12.1
Alternative Direct Fit Inserts
Image Insert Weight Grains
Gold Tip .246 Aluminum 50gr Insert Gold Tip .246 Aluminum 50gr Insert 50
Gold Tip .246 Brass Insert Gold Tip .246 Brass Insert 100
Gold Tip Velocity Pro Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
Gold Tip GTO Nock Gold Tip GTO Nock 5.3
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price

400 Spine Details

Gold Tip Velocity Pro Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Gold Tip Accu-lite .246 Insert Gold Tip Accu-lite .246 Insert - Standard 12.1
Alternative Direct Fit Inserts
Image Insert Weight Grains
Gold Tip .246 Aluminum 50gr Insert Gold Tip .246 Aluminum 50gr Insert 50
Gold Tip .246 Brass Insert Gold Tip .246 Brass Insert 100
Gold Tip Velocity Pro Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
Gold Tip GTO Nock Gold Tip GTO Nock 5.3
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price

500 Spine Details

Gold Tip Velocity Pro Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Gold Tip Accu-lite .246 Insert Gold Tip Accu-lite .246 Insert - Small 12.1
Alternative Direct Fit Inserts
Image Insert Weight Grains
Gold Tip .246 Aluminum 50gr Insert Gold Tip .246 Aluminum 50gr Insert 50
Gold Tip .246 Brass Insert Gold Tip .246 Brass Insert 100
Gold Tip Velocity Pro Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
Gold Tip GTO Nock Gold Tip GTO Nock 5.3
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price

600 Spine Details

Gold Tip Velocity Pro Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Gold Tip Accu-lite .246 Insert Gold Tip Accu-lite .246 Insert - Small 12.1
Alternative Direct Fit Inserts
Image Insert Weight Grains
Gold Tip .246 Aluminum 50gr Insert Gold Tip .246 Aluminum 50gr Insert 50
Gold Tip .246 Brass Insert Gold Tip .246 Brass Insert 100
Gold Tip Velocity Pro Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
Gold Tip GTO Nock Gold Tip GTO Nock 5.3
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price

Frequently Asked Questions

What is the Gold Tip Velocity Pro inside diameter?
Gold Tip Velocity Pro are a 6.5mm class arrow, with an exact inside diameter of 0.246" for all spine options.
